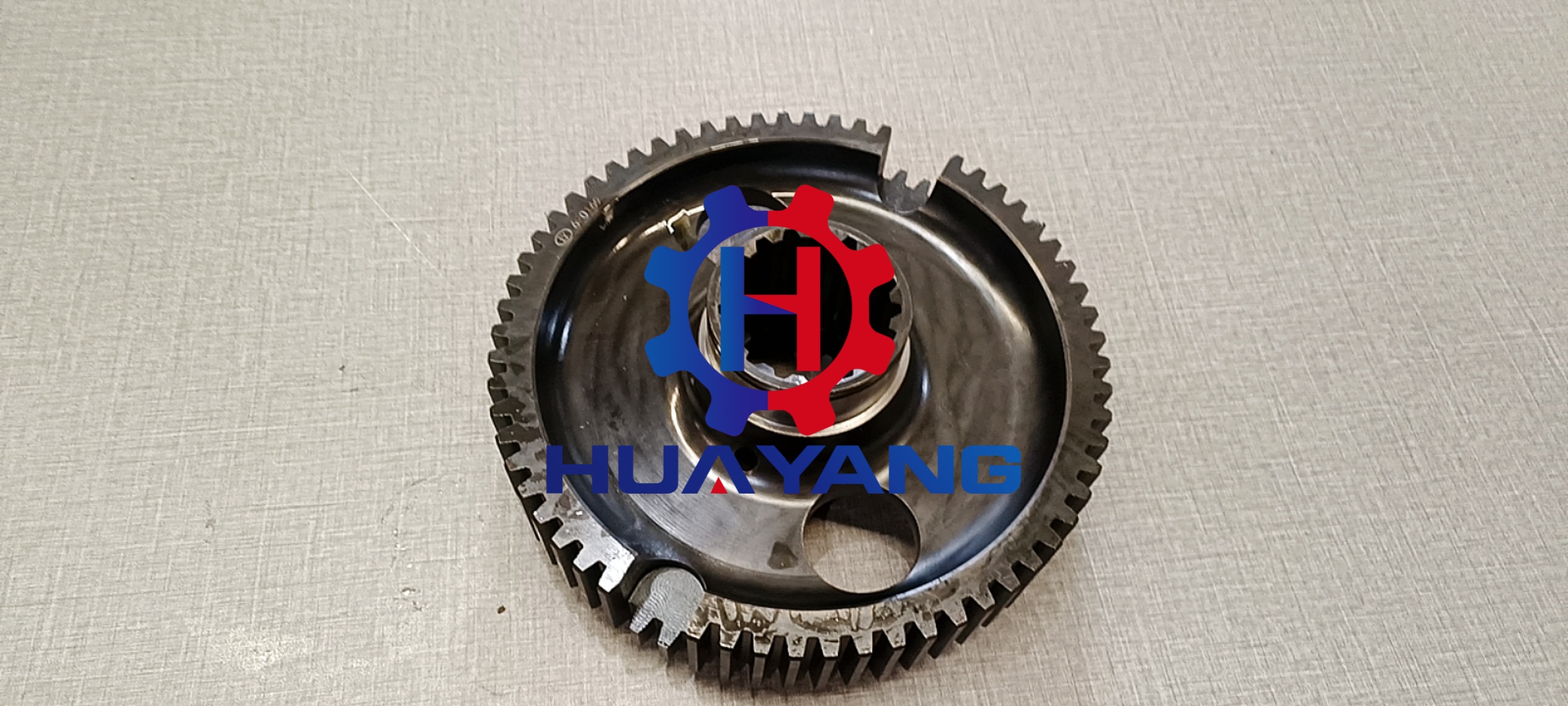

Premium Caterpillar (CAT) Sprocket Segment - 6P0169 (HUG, 64 Teeth), 9M5682, 1H8484
At Guangxi Huayang Engineering Machinery Equipment Co., Ltd., we specialize in providing high-quality aftermarket parts for a wide range of construction machinery, including Caterpillar (CAT). Our extensive inventory includes undercarriage components, hydraulic systems, transmission parts, power units, and wear parts for bulldozers, excavators, and loaders from leading brands like Komatsu and Caterpillar.
Product Overview: The Robust CAT Sprocket Segment
Introducing our premium aftermarket Caterpillar (CAT) sprocket segment, part number 6P0169, also known by its alternative part numbers 9M5682 and 1H8484. This high-quality segment features 64 teeth and is a crucial component of your Caterpillar machine's undercarriage system.
Key Advantages of Our Caterpillar Sprocket Segment
Enhanced Durability: Manufactured using high-grade steel and advanced heat treatment processes to ensure exceptional wear resistance and a long service life.
Precise Fit: Engineered to meet or exceed OEM specifications, guaranteeing a perfect fit and seamless integration with your Caterpillar machine.
Optimized Performance: Designed for efficient power transmission from the final drive to the track chain, ensuring smooth and reliable operation.
Cost-Effective Solution: Offers a high-quality alternative to OEM parts, providing significant cost savings without compromising on performance or reliability.
Applications and Compatible Machine Models
This robust sprocket segment is specifically designed for various Caterpillar bulldozer and excavator models. While specific compatibility should always be verified with your machine's manual or by contacting our expert team, this part is commonly used in the following series:
Caterpillar D8 Series Bulldozers: Widely used in heavy construction, mining, and land clearing operations, these powerful bulldozers require durable undercarriage components like our 64-tooth sprocket segment to effectively move large volumes of earth and materials. For instance, a CAT D8T bulldozer engaged in a large-scale infrastructure project relies on robust sprockets for efficient traction and pushing power.
Caterpillar D9 Series Bulldozers: Known for their exceptional power and productivity in the most demanding environments, including mining and heavy earthmoving. A CAT D9R working in an open-pit mine requires reliable sprocket segments to withstand the continuous stress and abrasive conditions.
Caterpillar 330 Series Excavators: These versatile excavators are used in a wide range of applications, including general construction, demolition, and material handling. A CAT 336D excavator digging foundations for a new building benefits from the precise power transmission provided by our high-quality sprocket segments.
Caterpillar 345 Series Excavators: Larger excavators designed for heavy-duty tasks such as quarrying and large infrastructure projects. A CAT 349E working in a quarry needs durable undercarriage parts to ensure continuous and efficient operation.
Other compatible Caterpillar models may exist. Please consult your machine's parts manual or contact us for verification.
Common Applications and Case Studies
The 6P0169, 9M5682, 1H8484 sprocket segment plays a vital role in the undercarriage system of Caterpillar bulldozers and excavators across various demanding applications:
Construction Sites: Ensuring reliable movement and power for tasks such as site preparation, excavation, and material handling.
Mining Operations: Providing the necessary traction and durability to withstand the harsh conditions of open-pit and underground mining.
Road Building: Enabling efficient grading, leveling, and earthmoving for the construction and maintenance of roads and highways.
Land Clearing and Forestry: Offering the strength and reliability required for clearing vegetation and preparing land for various purposes.
Demolition Projects: Providing the robust undercarriage needed for maneuvering in challenging demolition environments.
Frequently Asked Questions (FAQ)
Q1: How often should I replace the sprocket segments on my Caterpillar excavator?A1: The lifespan of sprocket segments depends on various factors, including operating conditions, soil type, and maintenance practices. Regular inspection is crucial. Look for signs of wear such as excessive tooth wear or damage. Generally, it's recommended to replace sprocket segments when they show significant wear or as part of a comprehensive undercarriage overhaul, typically every 3,000 to 5,000 operating hours, but this can vary.
Q2: What are the symptoms of worn-out sprocket segments?A2: Common symptoms include slippage of the track chain, noisy operation, reduced machine efficiency, and visible wear or damage to the sprocket teeth. Irregular movement or difficulty maintaining track tension can also indicate worn sprocket segments.
Q3: Can I replace just one worn sprocket segment, or should I replace them in pairs or as a set?A3: While it's possible to replace a single severely worn sprocket segment, it's generally recommended to replace them in pairs or as a complete set for even wear and optimal performance. Replacing only one worn segment can lead to uneven wear on other undercarriage components and reduce the overall lifespan of the system.
Troubleshooting and Maintenance Tips
Troubleshooting Common Issues:Track Slippage: Check for worn sprocket teeth or loose track tension. Ensure the correct track tension is maintained according to the machine's manual.
Excessive Noise: Inspect the sprocket segments for damage or excessive wear. Lubricate the undercarriage components as recommended.
Vibration: Damaged or unevenly worn sprocket segments can cause vibrations. Inspect and replace any damaged segments.
Maintenance Best Practices:Regularly inspect sprocket segments for wear, damage, and proper engagement with the track chain.
Maintain proper track tension as specified in your Caterpillar machine's operation and maintenance manual.
Keep the undercarriage clean from debris and abrasive materials that can accelerate wear.
Follow the manufacturer's recommendations for lubrication of undercarriage components.
Schedule periodic professional inspections to identify potential issues early.
Undercarriage Component Nomenclature (English, Chinese, Russian)
Komatsu PC200-8 Track Roller: 履带支重轮 (Lǚdài zhīzhòng lún), Опорный каток гусеницы (Opornyy katok gusenitsy) - Installed on the undercarriage frame.
Komatsu D65EX-16 Carrier Roller: 托链轮 (Tuō liàn lún), Поддерживающий ролик (Podderzhivayushchiy rolik) - Mounted on the top of the track frame.
Komatsu PC300-7 Idler Assembly: 引导轮总成 (Yǐndǎo lún zǒngchéng), Направляющее колесо в сборе (Napravlyayushcheye koleso v sbore) - Located at the front of the track frame.
Komatsu GD655-6 Blade Cylinder: 推土铲油缸 (Tuītǔ chǎn yóugāng), Гидроцилиндр отвала (Gidrotsilindr otvala) - Used to control the movement of the dozer blade.
Caterpillar CAT 320D Bucket Cylinder: 挖斗油缸 (Wā dǒu yóugāng), Гидроцилиндр ковша (Gidrotsilindr kovsha) - Attached to the bucket linkage to control digging.
Caterpillar CAT 740B Transmission Gear: 变速箱齿轮 (Biànsùxiāng chǐlún), Шестерня коробки передач (Shesternya korobki peredach) - Located inside the transmission unit.
Caterpillar CAT 966H Hydraulic Pump: 液压泵 (Yèyā bèng), Гидравлический насос (Gidravlicheskiy nasos) - Part of the hydraulic system, providing power for various functions.
Caterpillar CAT D10T Final Drive: 终传动 (Zhōng chuándòng), Конечная передача (Konechnaya peredacha) - Located at the end of the drive train, powering the tracks.
Caterpillar CAT 3512 Engine Oil Filter: 发动机机油滤清器 (Fādòngjī jīyóu lǜqīngqì), Масляный фильтр двигателя (Maslyanyy fil'tr dvigatelya) - Filters the engine oil.
Caterpillar CAT 140G Ripper Tooth: 松土器斗齿 (Sōngtǔ qì dòuchǐ), Зуб рыхлителя (Zub rykhlitelya) - Attached to the ripper to break up hard ground.
