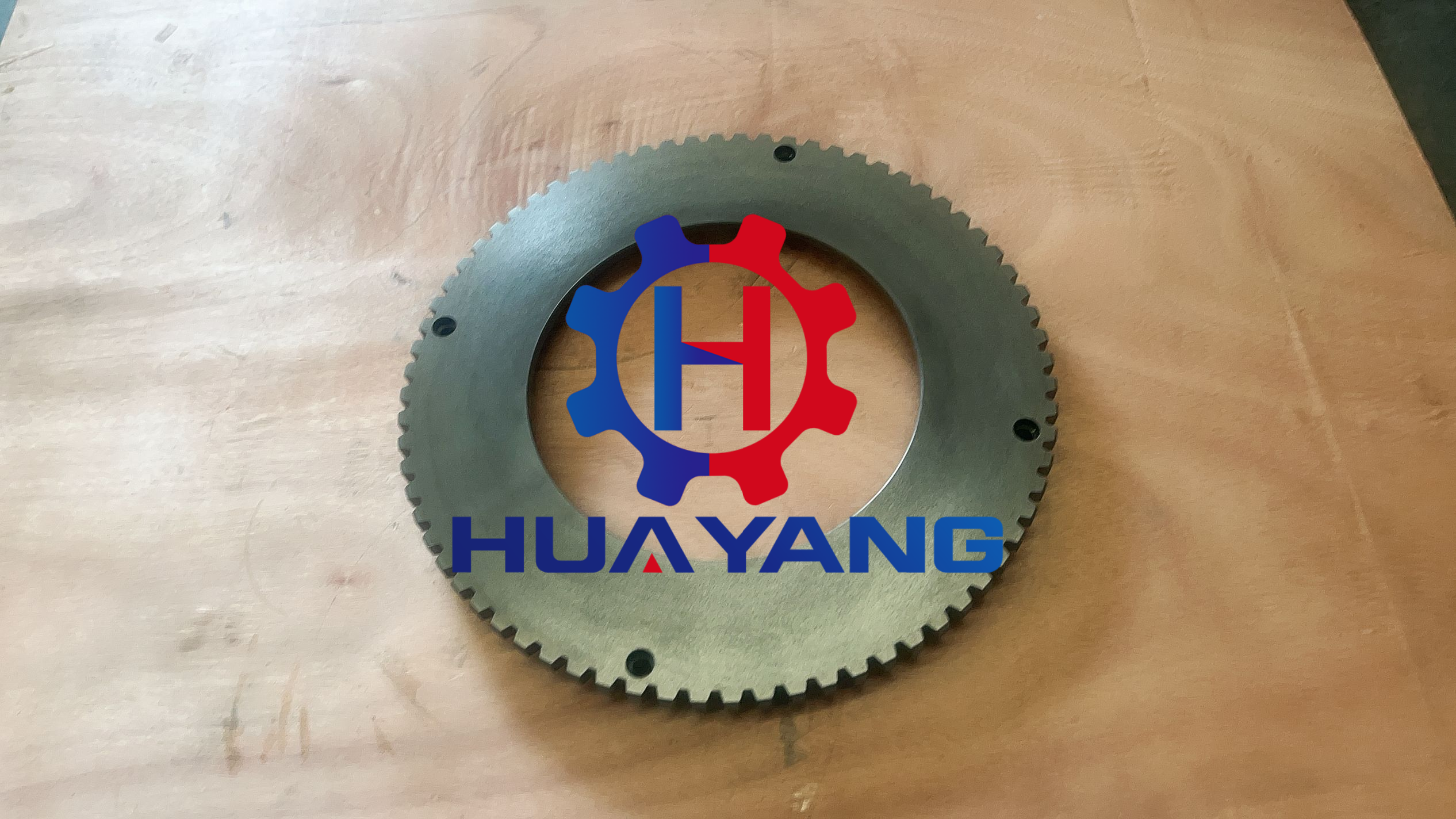

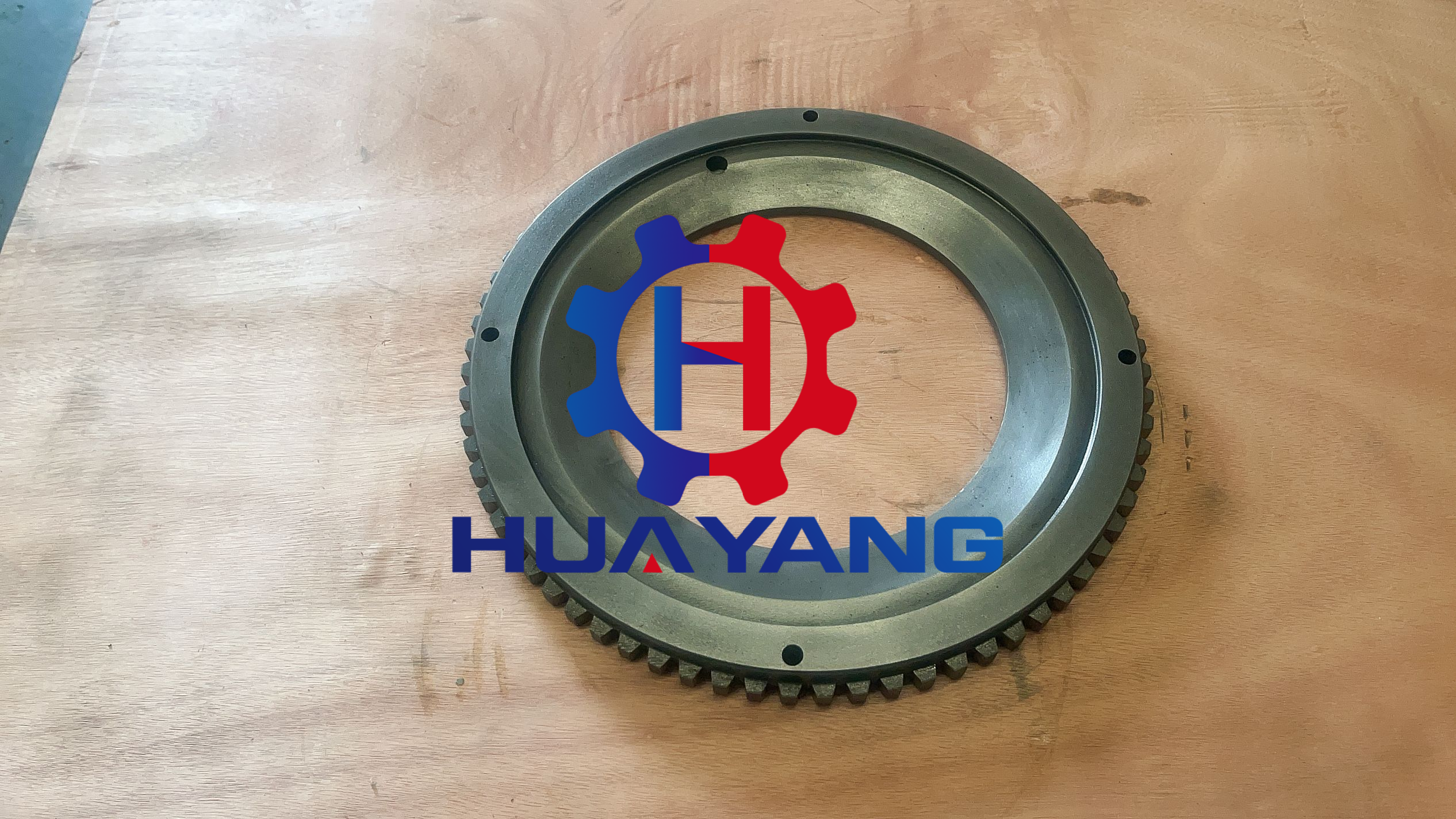

1M9177 - High-Quality Clutch Pressure Plate for Caterpillar (CAT)
Product Overview
The 1M9177 Clutch Pressure Plate (also referenced by part numbers 2266112 and 2H4496) is a critical component designed for Caterpillar (CAT) heavy machinery. This pressure plate is an essential part of the clutch assembly, responsible for engaging and disengaging the power flow from the engine to the transmission. Manufactured to strict specifications, it ensures reliable performance and durability in demanding operating conditions.
Product Parameters
Part Number: 1M9177
Alternate Part Numbers: 2266112, 2H4496
Component Type: Clutch Pressure Plate
Compatibility: Specifically designed for various Caterpillar (CAT) heavy equipment models.
Material: High-strength steel alloy for maximum durability.
Quality: Engineered to meet or exceed OEM performance and lifespan requirements.
Advantages & Selling Points
Superior Durability: Constructed from robust materials to withstand heavy loads and harsh environments, ensuring a long service life.
Precise Fit & Function: Manufactured to exact Caterpillar specifications, guaranteeing seamless integration and optimal performance within the clutch system.
Reliable Engagement: Provides consistent and smooth clutch engagement and disengagement, crucial for efficient operation and operator comfort.
Reduces Downtime: High-quality construction minimizes the risk of premature failure, keeping your equipment running and reducing costly repairs and downtime.
Cost-Effective Solution: Offers OEM-level quality and performance at a competitive price point.
Applicable Equipment
This clutch pressure plate is compatible with various older and current series Caterpillar heavy equipment models that specify part numbers 1M9177, 2266112, or 2H4496 for their clutch assembly. This often includes:
Caterpillar Dozers (e.g., certain models of D6, D7, D8 series)
Caterpillar Loaders (e.g., certain Wheel Loaders, Track Loaders)
Caterpillar Excavators
Caterpillar Motor Graders
Other heavy machinery utilizing compatible clutch systems.
Please verify part number compatibility with your specific equipment model and serial number.
Application Scenarios & Case Analysis
CAT heavy equipment featuring this clutch pressure plate is typically deployed in demanding environments requiring robust power transmission and precise control.
Typical Scenarios:
Construction: Earthmoving, grading, material handling on job sites. Constant gear changes and heavy loads stress the clutch system.
Mining: Hauling, digging, and pushing large volumes of material in harsh, abrasive conditions. Reliable clutch engagement is vital for safety and productivity.
Agriculture: Heavy tillage, pulling large implements where smooth, consistent power delivery is necessary.
Infrastructure Projects: Road building, dam construction, site preparation requiring continuous, heavy operation.
Case Analysis:
Consider a Caterpillar D7 Dozer working on a large-scale land clearing project. The operator frequently shifts between forward and reverse gears to push trees and earth. A worn or damaged clutch pressure plate will cause slipping, leading to loss of power, increased fuel consumption, and potentially damage to other transmission components. This results in significant operational inefficiency and costly repairs, delaying the project. By using a high-quality 1M9177 pressure plate, the dozer maintains optimal power transfer, allowing for efficient and reliable operation throughout the project duration, minimizing downtime and maximizing output.
Related & Similar Products
When replacing the clutch pressure plate, it's often recommended to inspect and potentially replace other components of the clutch system to ensure complete and long-lasting repair. Related products include:
These components are often found in the same CAT equipment models that use the 1M9177 pressure plate, ensuring compatibility for a complete clutch system overhaul.
Common Installation Problems & Solutions
Proper installation is crucial for the longevity and performance of the clutch pressure plate. Here are some common issues and their solutions:
Problem 1: Incorrect Alignment
The clutch disc and pressure plate are not correctly aligned with the transmission input shaft during installation.
Solution:
Always use a clutch alignment tool designed for the specific transmission to ensure the clutch disc is perfectly centered before tightening the pressure plate bolts.
Problem 2: Contamination
Grease, oil, or dirt on the friction surfaces of the clutch disc or flywheel.
Solution:
Ensure all clutch components and the flywheel surface are thoroughly cleaned before assembly. Use appropriate brake cleaner if necessary. Handle parts with clean hands or gloves.
Problem 3: Worn Associated Parts
Not replacing the pilot bearing or release bearing when installing a new clutch kit.
Solution:
It is highly recommended to replace the pilot bearing and release bearing (throw-out bearing) as part of any clutch replacement job. These are wear items and failure can quickly ruin a new clutch.
Problem 4: Incorrect Bolt Torque
Pressure plate bolts are not tightened correctly or evenly.
Solution:
Always use a torque wrench and follow the manufacturer's specified torque sequence and values for the pressure plate bolts. Tighten in stages in a star pattern.
