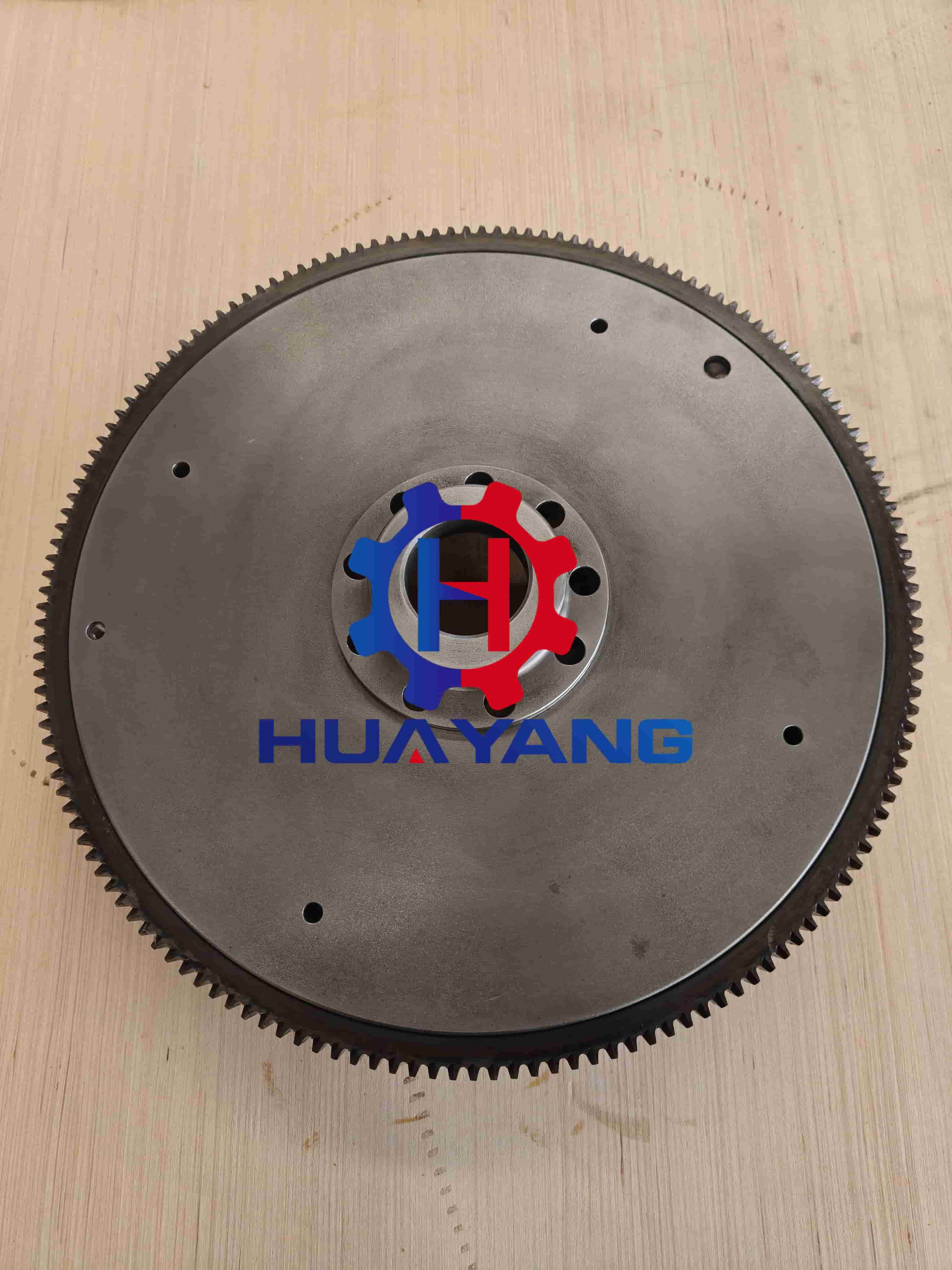

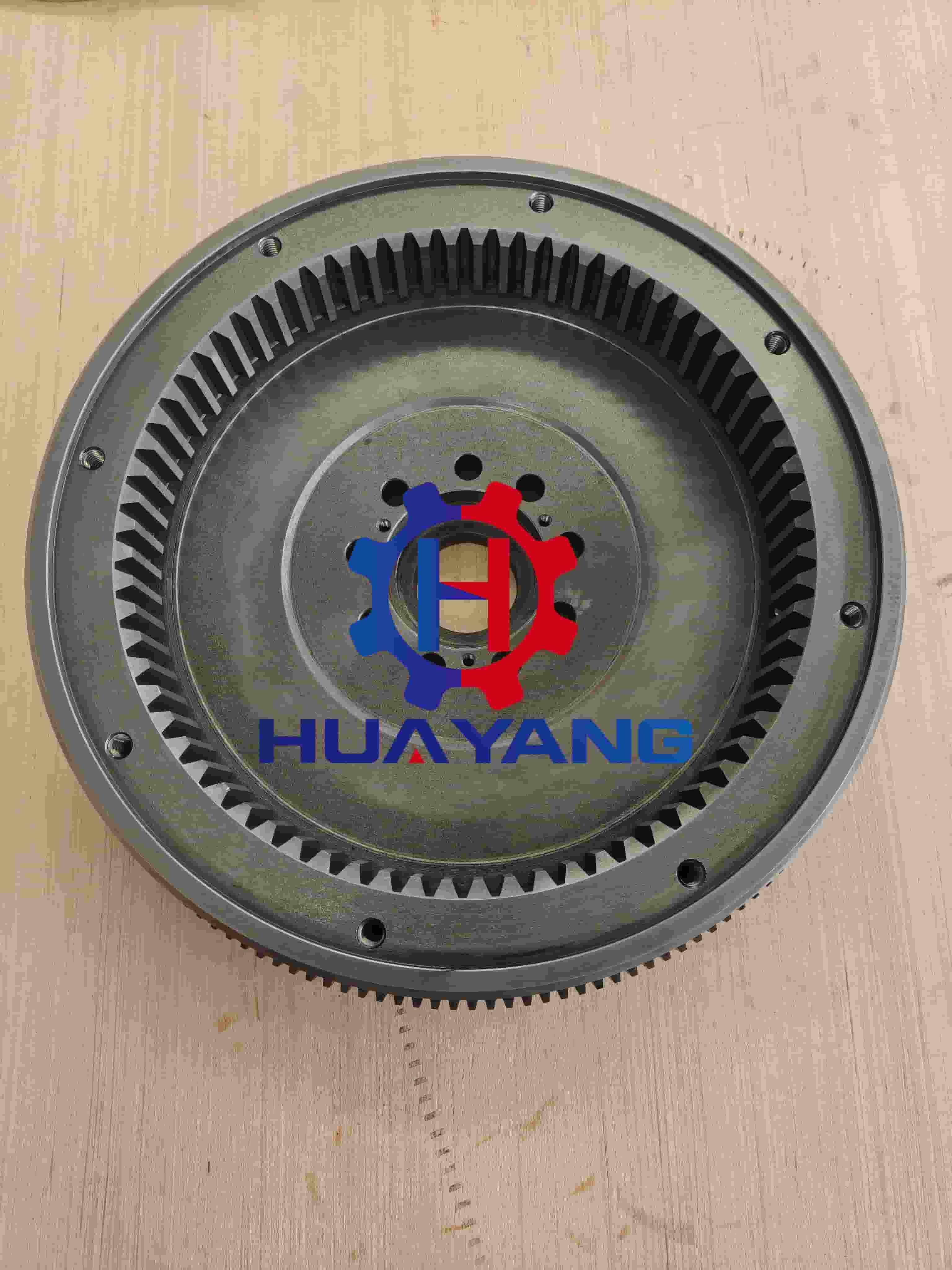

1W7601 FLYWHEEL ASSEMBLY
High-Quality Replacement Part for Caterpillar Equipment
Product Overview
The 1W7601 Flywheel Assembly is a critical component in the powertrain system of specific Caterpillar track-type tractors. Designed for durability and reliable performance, this flywheel plays an essential role in storing rotational energy, smoothing engine power delivery, and providing the inertia required for starting. It ensures efficient power transfer from the engine to the transmission, crucial for the heavy-duty applications these machines are known for.
Key Specifications
| Parameter | Detail |
|---|
| Part Number | 1W7601 |
| Part Type | Flywheel Assembly |
| Material | High-grade Cast Iron/Steel (Typical for heavy machinery flywheels) |
| Replacement For | 7S8284, 1W7611 (Confirm compatibility with your specific model) |
Applicable Equipment:
Caterpillar D6D Track-Type Tractor
Caterpillar D6E SR Track-Type Tractor
Caterpillar D6G SR Track-Type Tractor
And potentially other compatible models (always verify with your equipment's parts manual)
Advantages and Selling Points
Enhanced Performance: Ensures smooth engine operation and consistent power transfer for optimal machine performance.
Superior Durability: Manufactured from robust materials designed to withstand the extreme stresses of heavy-duty applications.
Reduced Vibration: Helps dampen torsional vibrations from the engine, protecting other drivetrain components and improving operator comfort.
Reliable Starting: Provides the necessary inertia for easy and reliable engine starting.
Precise Fit: Engineered to meet or exceed OEM specifications for a seamless fit and integration with compatible Caterpillar models.
Application Scenarios & Case Analysis
Caterpillar D6 series track-type tractors are versatile machines utilized across numerous demanding industries. The 1W7601 flywheel is integral to their reliable operation in these environments:
Typical Applications:
Construction: Site preparation, grading, dozing, and material spreading on building sites, road construction, and infrastructure projects.
Agriculture: Land clearing, tilling, and maintaining large farms and fields.
Mining: Haul road maintenance, overburden removal, and general utility work in mine sites.
Land Clearing: Removing trees, brush, and obstacles for development or other purposes.
Illustrative Case Example:
Imagine a D6D tractor working on a new highway construction project. The flywheel's ability to store and release energy ensures smooth transitions when the blade encounters varying resistance during dozing operations. A robust and well-balanced 1W7601 flywheel minimizes harmful vibrations that could fatigue the transmission or engine mounts over long hours of strenuous work. When the operator needs to restart the machine after a break, the flywheel provides the crucial inertia for the starter motor to turn the engine over reliably, minimizing downtime on a tight construction schedule. A failing flywheel, on the other hand, could lead to rough idle, difficulty starting, excessive vibration, and even damage to the transmission, halting critical progress on the project.
Related and Similar Products
When replacing the flywheel, it's often recommended to inspect and potentially replace other related powertrain components to ensure optimal system performance and longevity. Other parts frequently associated with the flywheel and used in compatible D6 series equipment include:
Clutch Assemblies and Components (Discs, Pressure Plates, Release Bearings)
Flywheel Housing
Crankshaft Seals (Rear)
Pilot Bearings/Bushings
Mounting Bolts and Hardware
Torque Converter Components (on models equipped with them)
We offer a comprehensive range of quality replacement parts for Caterpillar D6 series equipment. Contact us for availability and details on related items.
Common Installation Issues and Solutions
Proper installation is key to the performance and lifespan of a new flywheel. Here are some common issues encountered during installation and recommended solutions:
Issues & Solutions:
Issue: Improper cleaning of mating surfaces (crankshaft flange, flywheel).
Solution: Thoroughly clean both the crankshaft flange and the new flywheel surface with a suitable degreaser and ensure they are free of rust, dirt, oil, or old gasket material.
Issue: Failure to use an alignment tool for the clutch disc (if applicable).
Solution: Always use a clutch alignment tool to center the clutch disc with the pilot bearing/bushing and pressure plate during assembly before tightening the pressure plate bolts.
Issue: Incorrect torque applied to flywheel bolts.
Solution: Use a calibrated torque wrench and follow the manufacturer's specified torque sequence and values precisely. Uneven torque can warp the flywheel or damage the crankshaft flange.
Issue: Damaged or worn pilot bearing/bushing or crankshaft seal.
Solution: Always inspect and replace the pilot bearing/bushing and the rear crankshaft seal when replacing the flywheel. These are inexpensive parts that can cause major issues if they fail after the new flywheel is installed.
Issue: Installing the flywheel incorrectly (e.g., reversed if possible, or misaligned).
Solution: Pay close attention during removal to note the orientation. Many flywheels have a specific indexing pin or bolt pattern that prevents incorrect installation. Ensure the indexing is correct before tightening bolts.
Always refer to the specific service manual for your Caterpillar D6 model for detailed, step-by-step installation procedures and torque specifications.
