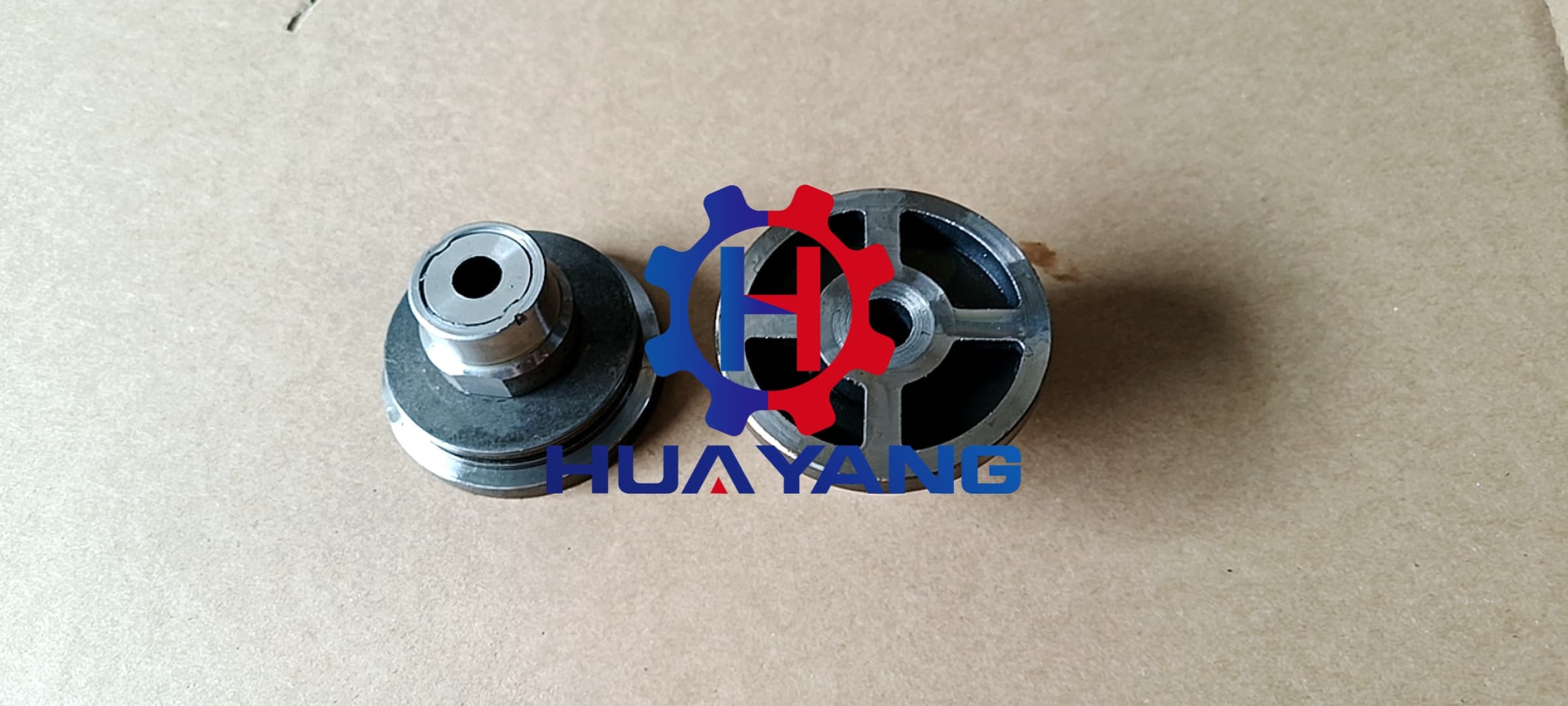

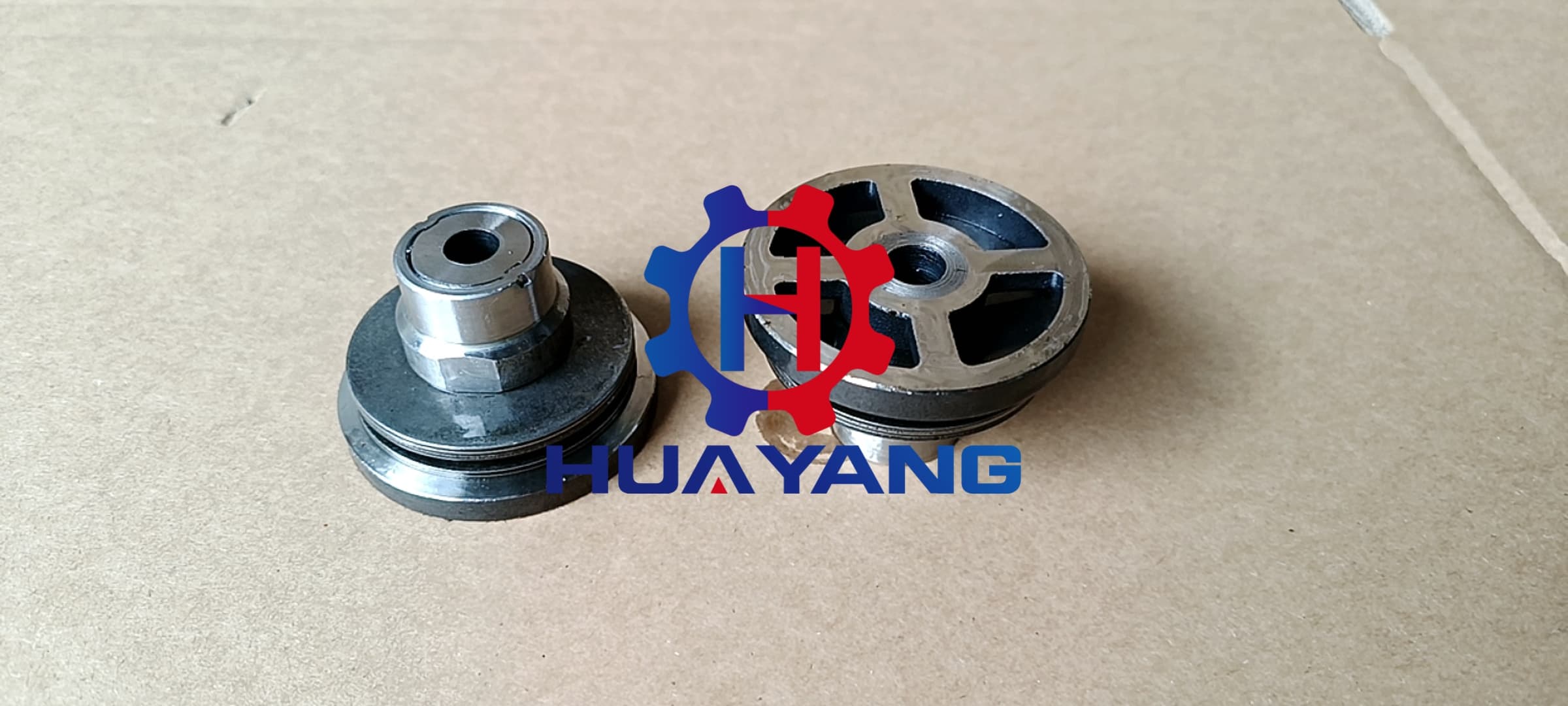

4P3546 Valve AS: Essential Component for Caterpillar Heavy Equipment
4P3546 阀门总成：卡特彼勒重型设备的关键部件
Product Overview / 产品概述
The 4P3546 Valve AS is a high-quality aftermarket or OEM replacement relief valve designed specifically for a range of Caterpillar heavy machinery. This crucial component plays a vital role in regulating hydraulic or oil pump pressure, ensuring the efficient and safe operation of your equipment. Engineered to meet or exceed OEM specifications, the 4P3546 valve offers reliable performance and exceptional durability in demanding working conditions.
4P3546 阀门总成是一款高品质的售后市场或 OEM 替换溢流阀，专为多种卡特彼勒重型机械设计。这个关键部件在调节液压或油泵压力方面发挥着至关重要的作用，确保您设备的有效和安全运行。4P3546 阀门的设计达到或超越了 OEM 规范，可在严苛的工作条件下提供可靠的性能和卓越的耐用性。
Product Advantages & Selling Points / 产品优势与卖点
Precision Engineering: Manufactured with high-grade materials to ensure exact fitment and optimal performance, providing precise pressure control. / 精密工程：采用高级材料制造，确保精准匹配和最佳性能，提供精确的压力控制。
Enhanced Durability: Built to withstand the harsh environments and rigorous demands of heavy machinery operations, extending component lifespan. / 增强耐用性：专为承受重型机械操作的恶劣环境和严苛要求而设计，延长部件使用寿命。
Reliable Performance: Acts as an essential safety and efficiency component, preventing system overpressure and maintaining consistent fluid flow. / 性能可靠：作为重要的安全和效率组件，可防止系统过压并保持流体流量稳定。
Cost-Effective Solution: A premium aftermarket option that delivers OEM-level quality without the premium price, reducing maintenance costs. / 经济高效的解决方案：提供 OEM 级别质量的优质售后选项，无需支付高昂的价格，从而降低维护成本。
Seamless Compatibility: Guaranteed to fit and perform as a direct replacement for original Caterpillar parts, ensuring easy installation. / 无缝兼容性：保证与卡特彼勒原厂零件直接替换，确保轻松安装和完美兼容。
Product Parameters / 产品参数
| Parameter / 参数 | Details / 详情 |
|---|
| Part Number / 部件号 | 4P3546 |
| Alternate Part Numbers / 替代部件号 | 4N8385, 2P2394 |
| Type / 类型 | Valve AS - Relief Valve (Oil Pump Relief Valve) / 阀门总成 - 溢流阀 (油泵溢流阀) |
| Weight / 重量 | 0.40 lbs (approximately) / 约 0.40 磅 |
| Length / 长度 | 5.80 cm (approximately) / 约 5.80 厘米 |
| Width / 宽度 | 4.90 cm (approximately) / 约 4.90 厘米 |
| Depth / 深度 | 6.10 cm (approximately) / 约 6.10 厘米 |
| Manufacturer (Aftermarket) / 制造商 (售后) | CTP (for aftermarket parts) / CTP (针对售后件) |
Applicable Equipment / 适用设备
The 4P3546 Valve AS is suitable for various Caterpillar equipment, including but not limited to:
4P3546 阀门总成适用于多种卡特彼勒设备，包括但不限于：
Articulated Dump Trucks / 铰接式自卸卡车: D250E, D250E II, D300E, D300E II
Challenger Tractors / 挑战者拖拉机: 65C, 65D
Earthmoving Compactors / 土方压实机: 815B, 815F, 816F
Machine Engines / 机器发动机: 3304
Application Scenarios & Case Analysis / 应用场景与案例分析
The equipment compatible with the 4P3546 Valve AS, such as Articulated Dump Trucks (D250E, D300E series) and Earthmoving Compactors (815B, 815F, 816F), are workhorses in demanding industries. These machines are primarily utilized in:
与 4P3546 阀门总成兼容的设备，如铰接式自卸卡车（D250E、D300E 系列）和土方压实机（815B、815F、816F），是高要求行业中的主力设备。这些机器主要用于：
Mining Operations: Hauling overburden, ore, and waste materials across challenging terrains. The valve ensures consistent hydraulic pressure for steering, dumping, and braking, critical for safety and efficiency in deep mines and quarries.
采矿作业：在崎岖地形上运输表土、矿石和废料。该阀门确保转向、倾卸和制动系统的液压压力稳定，这对于深矿和采石场的安全和效率至关重要。
Large-Scale Construction Projects: Earthmoving for highways, dams, commercial developments, and site preparation. Reliable valve function is key to the responsiveness and control of these machines during excavation and material handling.
大型建筑项目：用于公路、水坝、商业开发和场地准备的土方工程。可靠的阀门功能是这些机器在挖掘和物料搬运过程中响应能力和控制的关键。
Landfill Management: Compacting waste to maximize space and manage environmental impact. Compactors rely on robust hydraulic systems, where the relief valve prevents damage from pressure spikes during continuous compaction cycles.
垃圾填埋场管理：压实废物以最大化空间并管理环境影响。压实机依赖于强大的液压系统，其中溢流阀可在持续压实循环期间防止压力峰值造成的损坏。
Case Study: Quarry Operations in a Humid Climate
In a large quarry in Southeast Asia, D300E II articulated dump trucks were experiencing intermittent hydraulic system overpressure, leading to premature wear of seals and hoses. Investigation revealed a worn 4P3546 relief valve that was failing to regulate pressure effectively. Replacing the valve with a new 4P3546 Valve AS immediately resolved the issue, restoring stable hydraulic performance and significantly reducing downtime. This highlights the critical role of this valve in maintaining system integrity and operational longevity in harsh, high-demand environments.
案例分析：潮湿气候下的采石场作业
在东南亚的一个大型采石场，D300E II 铰接式自卸卡车曾出现间歇性液压系统过压，导致密封件和软管过早磨损。调查发现是磨损的 4P3546 溢流阀未能有效调节压力。用新的 4P3546 阀门总成替换该阀门后，问题立即解决，液压性能恢复稳定，停机时间显著减少。这凸显了该阀门在恶劣、高需求环境中维护系统完整性和延长运行寿命的关键作用。
Related Products & Applicable Equipment / 相关产品与适用设备
Beyond the 4P3546 Valve AS, maintaining Caterpillar heavy equipment requires a range of high-quality components. Here are categories of related products commonly associated with the D250E, D300E, 65C, 65D, 815B, 815F, 816F, and 3304 engine series:
除了 4P3546 阀门总成，维护卡特彼勒重型设备还需要一系列高质量的组件。以下是与 D250E、D300E、65C、65D、815B、815F、816F 和 3304 发动机系列常用的相关产品类别：
Hydraulic System Components: Hydraulic pumps, cylinders, hoses, seals, and other control valves (e.g., solenoid valves, main relief valves). These are crucial for the movement and control of the machine's implements.
液压系统组件：液压泵、油缸、软管、密封件和其他控制阀（例如，电磁阀、主溢流阀）。这些对于机器工具的运动和控制至关重要。
Engine Parts: Fuel injectors, filters (fuel, oil, air), pistons, connecting rods, and engine rebuild kits. Essential for the power generation and efficiency of the 3304 engine.
发动机部件：燃油喷射器、滤清器（燃油、机油、空气）、活塞、连杆和发动机大修套件。对于 3304 发动机的动力生成和效率至关重要。
Drivetrain Components: Transmission parts, final drives, and axles. Key for transferring power to the wheels or tracks in articulated dump trucks and compactors.
动力传动系统组件：变速箱部件、终传动和车桥。对于铰接式自卸卡车和压实机将动力传递到车轮或履带至关重要。
Undercarriage Parts: For track-type machines like the Challenger series (65C, 65D), components include track chains, idlers, rollers, and sprockets.
底盘部件：对于挑战者系列（65C、65D）等履带式机器，组件包括履带链、惰轮、滚轮和链轮。
Installation & Maintenance: Common Issues and Solutions / 安装与维护：常见问题及解决方案
Proper installation and regular maintenance are crucial for the longevity and performance of hydraulic components like the 4P3546 Valve AS. Here are common issues and solutions:
正确安装和定期维护对于 4P3546 阀门总成等液压组件的寿命和性能至关重要。以下是常见问题及解决方案：
Contamination of Hydraulic Fluid / 液压油污染:
Issue: Dirt, water, or metallic particles in the hydraulic fluid can damage the valve's internal components, leading to wear and malfunction.
Solution: Implement a rigorous fluid analysis program (e.g., S•O•S analysis), ensure regular hydraulic fluid and filter changes using high-efficiency filters, and maintain clean practices during maintenance.
问题：液压油中的灰尘、水或金属颗粒会损坏阀门内部组件，导致磨损和故障。
解决方案：实施严格的流体分析计划（例如，S•O•S 分析），确保定期更换液压油和使用高效滤清器，并在维护过程中保持清洁操作。
Incorrect Pressure Settings / 压力设置不正确:
Issue: If the relief valve is not set to the correct pressure specifications, it can lead to system underperformance or, more dangerously, overpressure, potentially damaging other components.
Solution: Always refer to the Caterpillar service manual for the exact pressure settings for your machine model. Use calibrated gauges for precise adjustment and verify operation after setting.
问题：如果溢流阀未设置为正确的压力规格，可能导致系统性能不足，或者更危险地，导致过压，从而可能损坏其他组件。
解决方案：务必参考卡特彼勒服务手册，获取您的机器型号的精确压力设置。使用经过校准的压力表进行精确调整，并在设置后验证操作。
Seal Degradation and Leaks / 密封件退化和泄漏:
Issue: Over time, seals within the valve or connecting hoses can harden, crack, or wear, leading to internal or external leaks and pressure loss.
Solution: Regularly inspect seals for signs of wear or damage. Replace worn seals with high-quality, OEM-grade replacements. Address any leaks promptly to prevent system inefficiency and further contamination.
问题：随着时间的推移，阀门内部或连接软管中的密封件可能会硬化、破裂或磨损，导致内部或外部泄漏以及压力损失。
解决方案：定期检查密封件是否有磨损或损坏迹象。用高质量的 OEM 级替换件更换磨损的密封件。及时处理任何泄漏，以防止系统效率低下和进一步污染。
Incorrect Installation / 安装不当:
Issue: Improper torque, misaligned fittings, or neglecting to clean mating surfaces can lead to premature failure or reduced efficiency.
Solution: Follow manufacturer's installation guidelines meticulously. Ensure all surfaces are clean, use appropriate torque settings for fasteners, and verify proper alignment before tightening.
问题：扭矩不当、接头未对准或忽视清洁配合面可能导致过早故障或效率降低。
解决方案：严格遵循制造商的安装指南。确保所有表面清洁，对紧固件使用适当的扭矩设置，并在拧紧前验证正确对齐。
