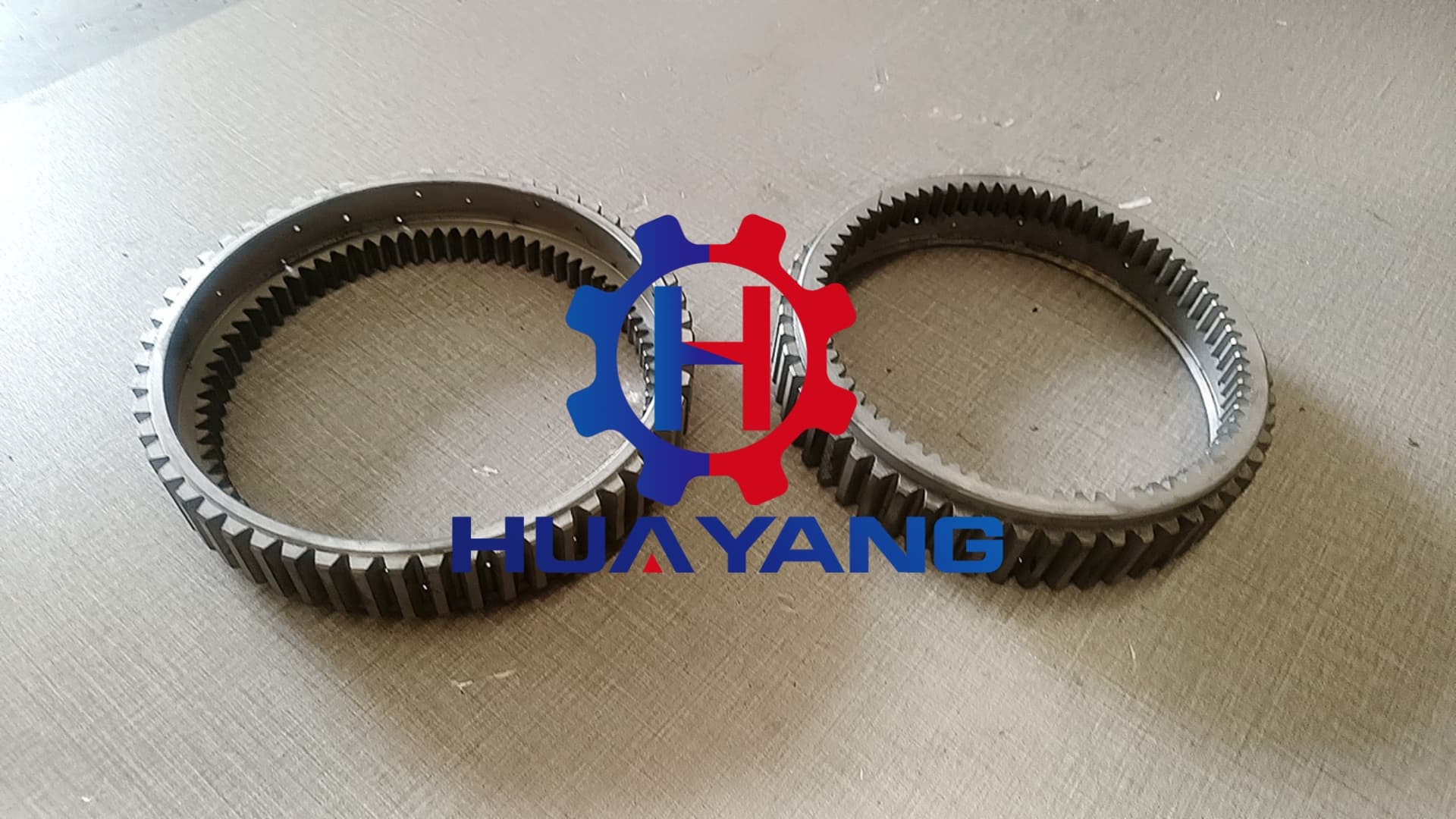

KOMATSU D31 D31-18 D31P-20
Drum Ring Gear
Part Numbers: 113-15-22650, 113-15-22620
Product Overview
This product is a high-quality replacement Drum Ring Gear specifically designed for KOMATSU D31, D31-18, and D31P-20 series crawler bulldozers. The ring gear is a critical component within the final drive assembly, responsible for transmitting power from the planetary gear set to the track sprocket, enabling machine movement. Manufactured to strict quality standards, this ring gear ensures reliable performance and durability in demanding operating conditions.
Product Specifications
Part Numbers: 113-15-22650, 113-15-22620
Type: Drum Ring Gear (Final Drive Component)
Material: High-strength alloy steel
Heat Treatment: Induction hardened for wear resistance
Precision Machining: Engineered for exact fit and smooth operation
Weight: Approx. [Specify Weight Range if Known, e.g., 50-70 kg]
Applicable Equipment: KOMATSU D31, D31-18, D31P-20 Crawler Dozers
Key Advantages
Superior Durability: Made from robust materials with advanced heat treatment for extended lifespan.
Precise Fit: Manufactured to OEM specifications ensuring seamless integration and performance.
Optimized Performance: Facilitates efficient power transfer within the final drive.
Reduced Downtime: Reliable component minimizes unexpected failures and maintenance.
Cost-Effective Solution: Offers a balance of quality and value for equipment maintenance.
Applicable Equipment & Application Scenarios
This Drum Ring Gear is designed for the KOMATSU D31, D31-18, and D31P-20 series crawler dozers. These versatile machines are widely used in various applications requiring earthmoving, grading, and material spreading.
Typical Application Scenarios:
Construction: Site preparation, small-scale road building, foundation work.
Landscaping: Grading, leveling, shaping terrain for parks, gardens, and commercial properties.
Agriculture: Land clearing, ditching, farm road maintenance.
Utility Work: Backfilling trenches, maintaining rights-of-way.
Light Earthmoving: Moving soil, gravel, and other materials on smaller job sites.
Case Analysis Example:
A D31P-20 dozer operating on a residential construction site for grading and backfilling depends heavily on a reliable final drive system. A worn or damaged ring gear can lead to power loss, noisy operation, and eventual machine breakdown, halting critical site work. Replacing the ring gear with a high-quality part like 113-15-22650 ensures efficient power delivery to the tracks, allowing the dozer to perform its tasks effectively and meet project deadlines without unexpected downtime caused by final drive issues.
Related Undercarriage & Final Drive Components
Maintaining the final drive and undercarriage system is crucial for the overall performance and longevity of your KOMATSU dozer. We also offer other related parts for the D31 series:
Final Drive Pinion: Works in conjunction with the ring gear.
Final Drive Bearings & Seals: Essential for smooth and protected operation.
Sprockets: Drives the track chain.
Idlers: Guides the track chain and provides tension.
Track Rollers (Bottom Rollers): Support the weight of the machine and guide the track.
Carrier Rollers (Top Rollers): Support the track chain between the sprocket and idler.
Track Chains & Track Shoes: The main components of the track assembly.
These components are also applicable to KOMATSU D31, D31-18, and D31P-20 models, ensuring you can source a wide range of necessary parts.
Common Installation Issues & Solutions
Proper installation of the drum ring gear is vital for its performance and lifespan. Here are some common issues and how to address them:
Problem: Incorrect alignment with mating components (pinion, carrier).
Solution: Ensure all mating surfaces are clean and free of debris. Use appropriate lifting tools to carefully align the ring gear during installation. Check manufacturer's service manual for specific alignment procedures.
Problem: Improper torqueing of bolts or fasteners.
Solution: Always follow the manufacturer's specified torque values and sequences. Using a calibrated torque wrench is essential to prevent over-tightening (damaging bolts/housing) or under-tightening (leading to loosening and failure).
Problem: Damage to seals or O-rings during installation.
Solution: Lubricate seals and O-rings with appropriate grease before installation. Be careful not to pinch or cut them when assembling components. Replace any damaged seals immediately to prevent oil leaks and contamination.
Problem: Contamination of the final drive housing.
Solution: Thoroughly clean the final drive housing before installing the new ring gear and other components. Ensure no dirt, metal shavings, or old oil residue remains. Use clean, specified lubricant upon reassembly.
It is highly recommended that installation be performed by qualified personnel with experience in heavy equipment repair, following the KOMATSU service manual.
