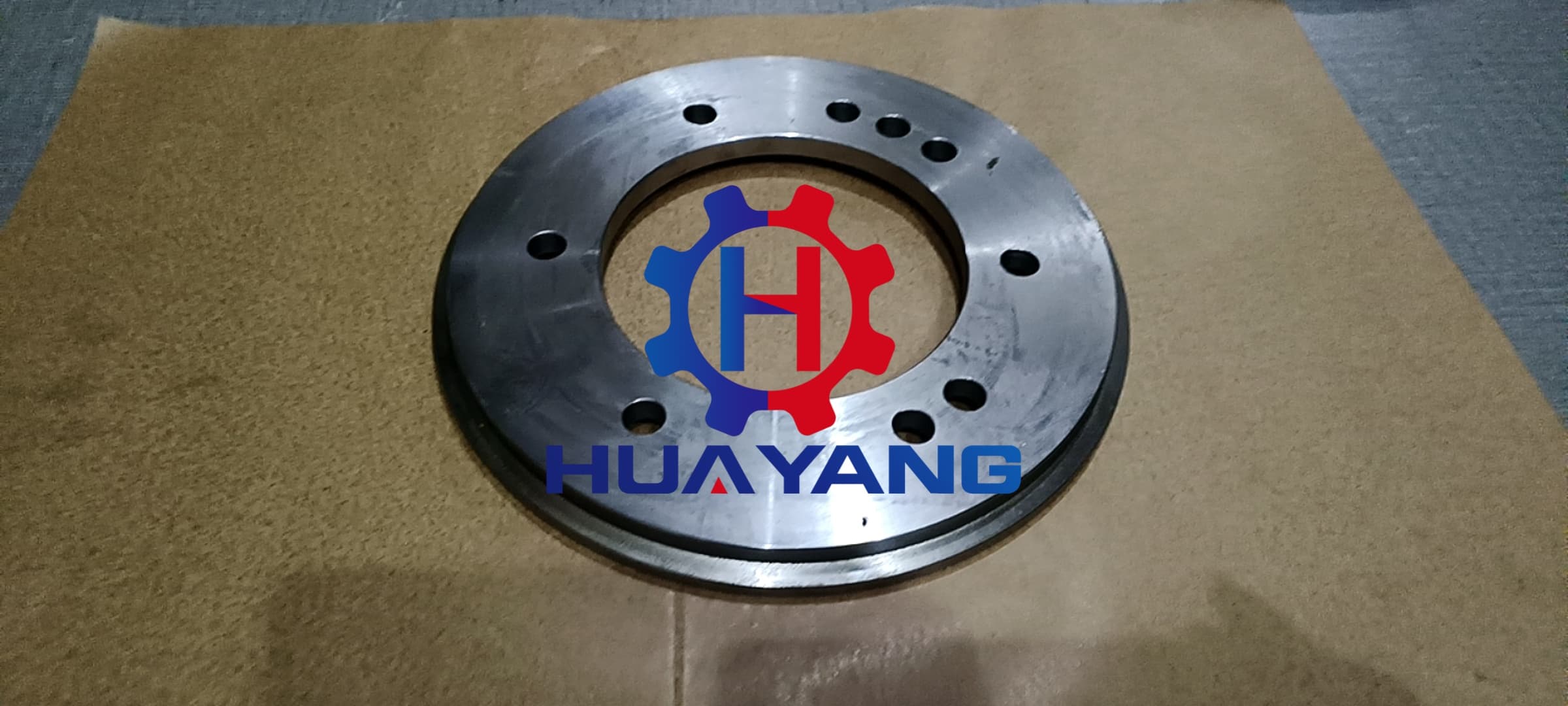

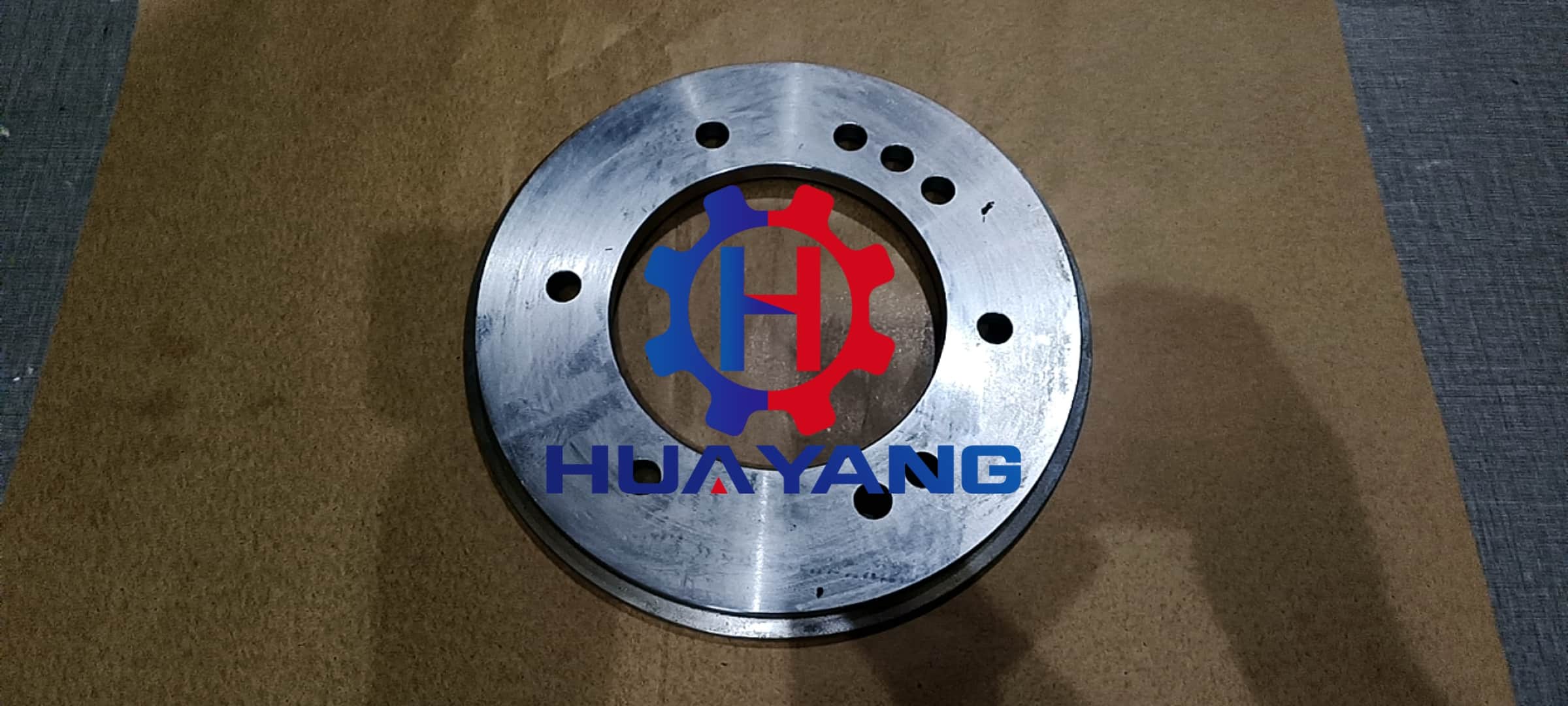

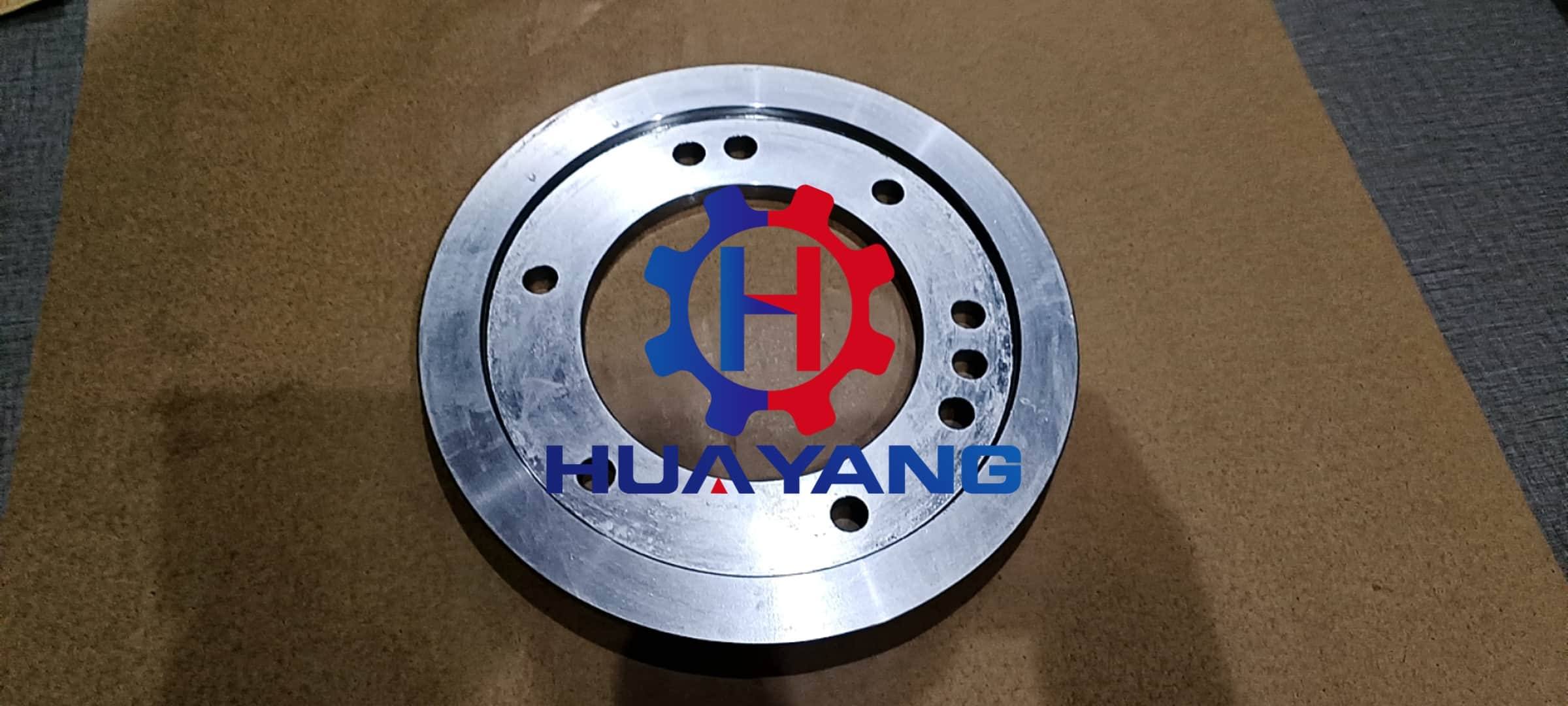

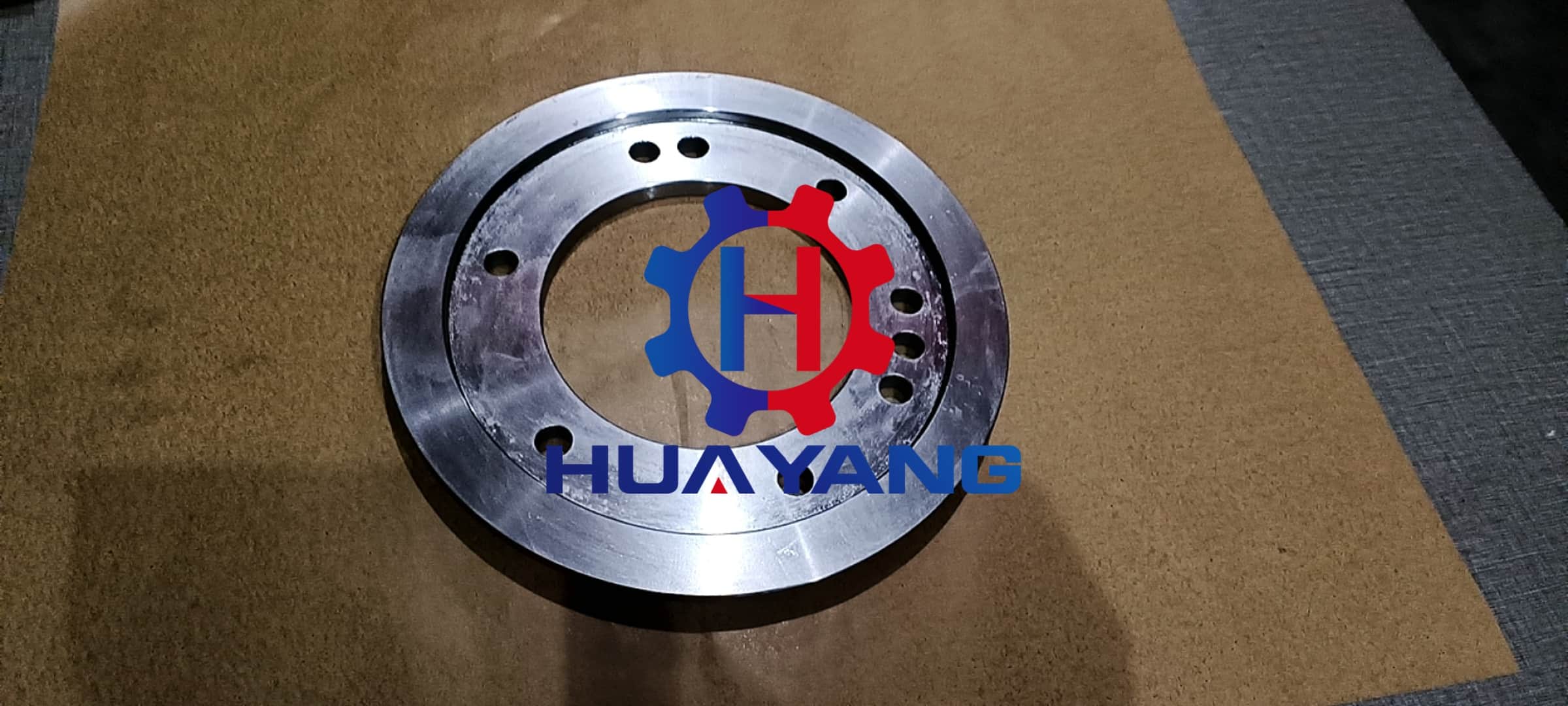

Flange 14Y-21-13150 for Komatsu Bulldozers
小松推土机法兰 14Y-21-13150
Product Overview
产品概述
The Flange 14Y-21-13150 is a crucial genuine Komatsu part designed for specific Komatsu bulldozer models. As a key component in the final drive system, this flange ensures stable power transmission and reliable operation under challenging working conditions. Manufactured to high standards, it provides excellent durability and perfect compatibility, making it an ideal replacement part to maintain the performance and longevity of your heavy equipment.
法兰 14Y-21-13150 是专为小松推土机型号设计的关键原厂零件。作为终传动系统中的核心部件，此法兰确保在严苛工况下的稳定动力传输和可靠运行。该产品采用高标准制造，提供卓越的耐用性和完美的兼容性，是您维护重型设备性能和延长使用寿命的理想替代零件。
Key Selling Points | 产品优势卖点
Precision Engineered: Guarantees perfect fit and seamless integration with Komatsu final drive systems.
精工制造： 确保与小松终传动系统的完美匹配和无缝集成。
Enhanced Durability: Constructed from high-quality materials to withstand extreme loads and harsh environments, extending service life.
增强耐用性： 采用优质材料制造，可承受极端负载和恶劣环境，延长使用寿命。
Optimal Performance: Helps maintain efficient power transfer and reduces wear on other critical components.
优化性能： 有助于保持高效的动力传输，并减少其他关键部件的磨损。
Reliable Operation: Minimizes the risk of downtime due to component failure, ensuring continuous productivity.
可靠运行： 最大限度地降低因部件故障导致的停机风险，确保持续的生产力。
Product Parameters and Applicable Equipment
产品参数与适用设备
This flange is primarily designed for the final drive systems of Komatsu Bulldozer models D65E-12 and D85ESS-2, among others.
此法兰主要设计用于小松推土机 D65E-12 和 D85ESS-2 等型号的终传动系统。
| Parameter | 参数 | Value/Description | 数值/说明 |
|---|
| Part Number | 零件号 | 14Y-21-13150 | 14Y-21-13150 |
| Product Type | 产品类型 | Flange (Final Drive System Component) | 法兰（终传动系统部件） |
| Material | 材料 | High-strength alloy steel (Forged) | 高强度合金钢（锻造） |
| Applicable Equipment (Bulldozers) | 适用设备（推土机） | Komatsu D60P, D65E, D65EX, D65P, D65PX, D70LE, D85E, D85ESS | 小松 D60P, D65E, D65EX, D65P, D65PX, D70LE, D85E, D85ESS |
| Bulldozer D65E-12 Engine Power | 推土机 D65E-12 发动机功率 | 135 kW (180 HP) | 135 千瓦 (180 马力) |
| Bulldozer D65E-12 Operating Weight | 推土机 D65E-12 操作重量 | Approx. 19,065 - 19,125 kg | 约 19,065 - 19,125 公斤 |
| Bulldozer D85ESS-2 Engine Power | 推土机 D85ESS-2 发动机功率 | 149 kW (200 HP) or 215 HP | 149 千瓦 (200 马力) 或 215 马力 |
| Bulldozer D85ESS-2 Operating Weight | 推土机 D85ESS-2 操作重量 | Approx. 20,670 - 21,490 kg | 约 20,670 - 21,490 公斤 |
Application Scenarios & Case Analysis
适用场景与案例分析
The Komatsu D65E-12 and D85ESS-2 bulldozers, for which the 14Y-21-13150 flange is designed, are versatile heavy machines used in a wide range of demanding applications. Their robust design and powerful engines make them indispensable for large-scale earthmoving and construction projects.
法兰 14Y-21-13150 所适用的小松 D65E-12 和 D85ESS-2 推土机是多功能重型机械，广泛应用于各种严苛场景。其坚固的设计和强大的发动机使其成为大型土方工程和建筑项目的不可或缺的设备。
Typical Application Scenarios | 典型应用场景
Construction Sites: Used for site preparation, land clearing, leveling, and creating foundations for buildings and infrastructure. Their ability to move large volumes of soil efficiently is critical for project timelines.
建筑工地： 用于场地准备、土地清理、平整以及为建筑物和基础设施创建地基。其高效移动大量土壤的能力对项目进度至关重要。
Mining Operations: Essential for overburden removal, pushing coal or ore, and maintaining haul roads. The machines' durability ensures continuous operation in harsh mining environments.
采矿作业： 对剥离覆盖物、推动煤炭或矿石以及维护运输道路至关重要。机器的耐用性确保在恶劣采矿环境下的持续运行。
Road Construction & Maintenance: Involved in preparing roadbeds, cutting grades, and backfilling trenches for utility lines. They create stable and level surfaces for new roads and maintain existing ones.
道路施工与维护： 参与路基准备、坡度切割以及公用事业管线的沟槽回填。它们为新道路创建稳定平坦的表面，并维护现有道路。
Forestry and Logging (D85ESS-2): The D85ESS-2, with its specific design, is well-suited for logging operations, including clearing land and assisting with timber extraction using its towing winch capability.
林业和伐木（D85ESS-2）： D85ESS-2 凭借其特殊设计，非常适合伐木作业，包括清理土地和利用其牵引绞盘能力辅助木材提取。
Case Analysis (Illustrative Examples) | 案例分析（示例）
Large-Scale Residential Development: A D65E-12 bulldozer is deployed to clear several acres of dense vegetation and uneven terrain. It efficiently pushes trees and debris into piles for removal, then precisely grades the land, creating level building pads and ensuring proper drainage for future homes. The reliability of components like the 14Y-21-13150 flange is crucial to avoid costly delays on such extensive projects.
大型住宅开发项目： 一台 D65E-12 推土机被部署用于清理数英亩的茂密植被和不平坦的地形。它高效地将树木和碎屑推成堆以便清除，然后精确平整土地，为未来的房屋创建平坦的建筑平台并确保适当的排水。对于此类大型项目，14Y-21-13150 法兰等部件的可靠性对于避免代价高昂的延误至关重要。
Open-Pit Mine Expansion: In an open-pit coal mine, D85ESS-2 bulldozers are continuously operating to remove overburden, exposing coal seams. The powerful S6D125E-2 engine and robust final drive, supported by durable flanges like 14Y-21-13150, allow these machines to exert immense pushing force. Their ability to handle large blade capacities and maintain high traction on challenging, loose terrain is vital for optimizing extraction rates and maintaining safe access roads within the mine.
露天矿扩建： 在一个露天煤矿中，D85ESS-2 推土机持续运行以剥离覆盖物，暴露煤层。强大的 S6D125E-2 发动机和坚固的终传动系统（由 14Y-21-13150 等耐用型法兰支持）使这些机器能够施加巨大的推力。它们处理大铲斗容量并在充满挑战的松散地形上保持高牵引力的能力对于优化开采率和维护矿内安全通道至关重要。
Related Products & Applicable Equipment
相关产品与适用设备
Beyond the 14Y-21-13150 flange, several other components are critical to the final drive system and overall bulldozer operation. These similar products often require replacement due to wear and tear in demanding environments.
除了 14Y-21-13150 法兰之外，还有其他几个部件对终传动系统和推土机的整体运行至关重要。这些类似产品在严苛环境下由于磨损通常需要更换。
Other Common Komatsu Bulldozer Final Drive & Undercarriage Parts | 小松推土机终传动与底盘其他常见部件
Final Drive Gears/Pinions: Critical for torque multiplication and power transfer to the tracks. (e.g., for D65, D85 series)
终传动齿轮/小齿轮： 对于扭矩放大和向履带的动力传输至关重要。（例如，D65、D85 系列）
Sprockets: Drive the track chain. Bolt-on segmented sprocket teeth are common for easier field replacement. (Applicable to various Komatsu bulldozers like D65, D85, D155)
驱动轮： 驱动履带链。分段式螺栓固定驱动轮齿便于现场更换。（适用于 D65、D85、D155 等各种小松推土机）
Track Chains / Links: Form the main structure of the tracks. (Applicable to most Komatsu crawler dozers)
履带链/履带板： 构成履带的主要结构。（适用于大多数小松履带式推土机）
Track Rollers (Carrier & Lower Rollers): Support the weight of the machine and guide the track. (Applicable to most Komatsu crawler dozers)
支重轮（托链轮和下支重轮）： 支撑机器重量并引导履带。（适用于大多数小松履带式推土机）
Idlers: Guide the track and maintain track tension. (Applicable to most Komatsu crawler dozers)
引导轮： 引导履带并保持履带张紧度。（适用于大多数小松履带式推土机）
Seal Kits (for Final Drive, Cylinders, etc.): Essential for preventing leaks and maintaining fluid integrity within hydraulic and drive systems.
密封件（用于终传动、油缸等）： 对于防止泄漏和保持液压和传动系统内流体完整性至关重要。
Other Flanges: For example, Flange 113-27-21230 for Komatsu D30, D31, D40, D41 final drives, which serves a similar function on different machine models.
其他法兰： 例如，法兰 113-27-21230 适用于小松 D30、D31、D40、D41 终传动，在不同机器型号上发挥类似功能。
Common Installation & Maintenance Issues and Solutions
安装维护常见问题及解决方案
Proper installation and regular maintenance are crucial for the longevity and optimal performance of parts like the 14Y-21-13150 flange and the overall bulldozer. Ignoring these aspects can lead to premature wear, component failure, and costly downtime.
正确的安装和定期维护对于 14Y-21-13150 法兰等零件和推土机整体的寿命和最佳性能至关重要。忽视这些方面可能导致过早磨损、部件故障和代价高昂的停机时间。
Flange Installation & Maintenance Issues | 法兰安装与维护问题
Uneven Bolt Fastening: Can lead to uneven stress distribution, gasket failure, and leakage.
Solution: Follow manufacturer's specified torque sequence and values. Use calibrated torque wrenches.
螺栓紧固不均： 可能导致应力分布不均、垫片失效和泄漏。
解决方案： 遵循制造商指定的扭矩顺序和数值。使用经过校准的扭矩扳手。
Damage or Contamination of Flange Faces: Dirt, scratches, or corrosion on the sealing surface compromise the seal.
Solution: Ensure flange faces are clean and free of defects before installation. Use new gaskets designed for the application.
<
法兰密封面损坏或污染： 密封面上的污垢、划痕或腐蚀会损害密封。
解决方案： 安装前确保法兰密封面清洁且无缺陷。使用为特定应用设计的全新垫片。
Improper Gasket Selection/Installation: Incorrect material or size, or misalignment during installation, can cause leaks.
Solution: Always use the correct OEM or high-quality equivalent gasket. Ensure proper alignment during assembly.
垫片选择/安装不当： 材料或尺寸不正确，或安装时错位，可能导致泄漏。
解决方案： 始终使用正确的原厂或高质量的同等垫片。确保组装时正确对齐。
Excessive Vibration/System Stresses: Can loosen bolts over time and distort the flange.
Solution: Regular inspections to check bolt tightness. Address root causes of excessive vibration in the machine.
过度振动/系统应力： 随着时间的推移可能导致螺栓松动并使法兰变形。
解决方案： 定期检查螺栓紧固度。解决机器过度振动的根本原因。
Corrosion: Exposure to harsh chemicals, water, or moisture can degrade the flange material.
Solution: Apply appropriate anti-corrosion coatings or lubricants. Regular cleaning and inspection in corrosive environments.
腐蚀： 暴露于腐蚀性化学品、水或湿气可能导致法兰材料降解。
解决方案： 涂抹适当的防腐涂层或润滑剂。在腐蚀性环境中定期清洁和检查。
General Bulldozer Maintenance Tips | 推土机一般维护提示
Regular Fluid Checks: Monitor engine oil, hydraulic fluid, and coolant levels. Contaminated or low fluids can lead to system failures.
Undercarriage Inspection: Routinely check tracks, rollers, idlers, and sprockets for wear and proper tension. Timely replacement of worn components prevents more extensive damage.
Clean Radiator and Cooling System: Prevent overheating by ensuring air flow through the radiator is not restricted by dirt or debris.
Engine and Fuel System Maintenance: Address starting issues by checking battery, fuel system, and starter motor. Use clean fuel and replace filters regularly.
液位检查： 定期检查发动机机油、液压油和冷却液液位。受污染或低液位可能导致系统故障。
底盘检查： 定期检查履带、支重轮、引导轮和驱动轮的磨损情况和张紧度。及时更换磨损部件可防止更严重的损坏。
清洁散热器和冷却系统： 确保散热器空气流通不受灰尘或碎屑限制，防止过热。
发动机和燃油系统维护： 通过检查电池、燃油系统和启动电机来解决启动问题。使用清洁燃油并定期更换滤清器。
Please note: This content is for informational purposes and should be verified with official Komatsu documentation or a qualified technician for specific applications and maintenance procedures.
请注意：此内容仅供参考，具体应用和维护程序应与小松官方文档或合格技师确认。
