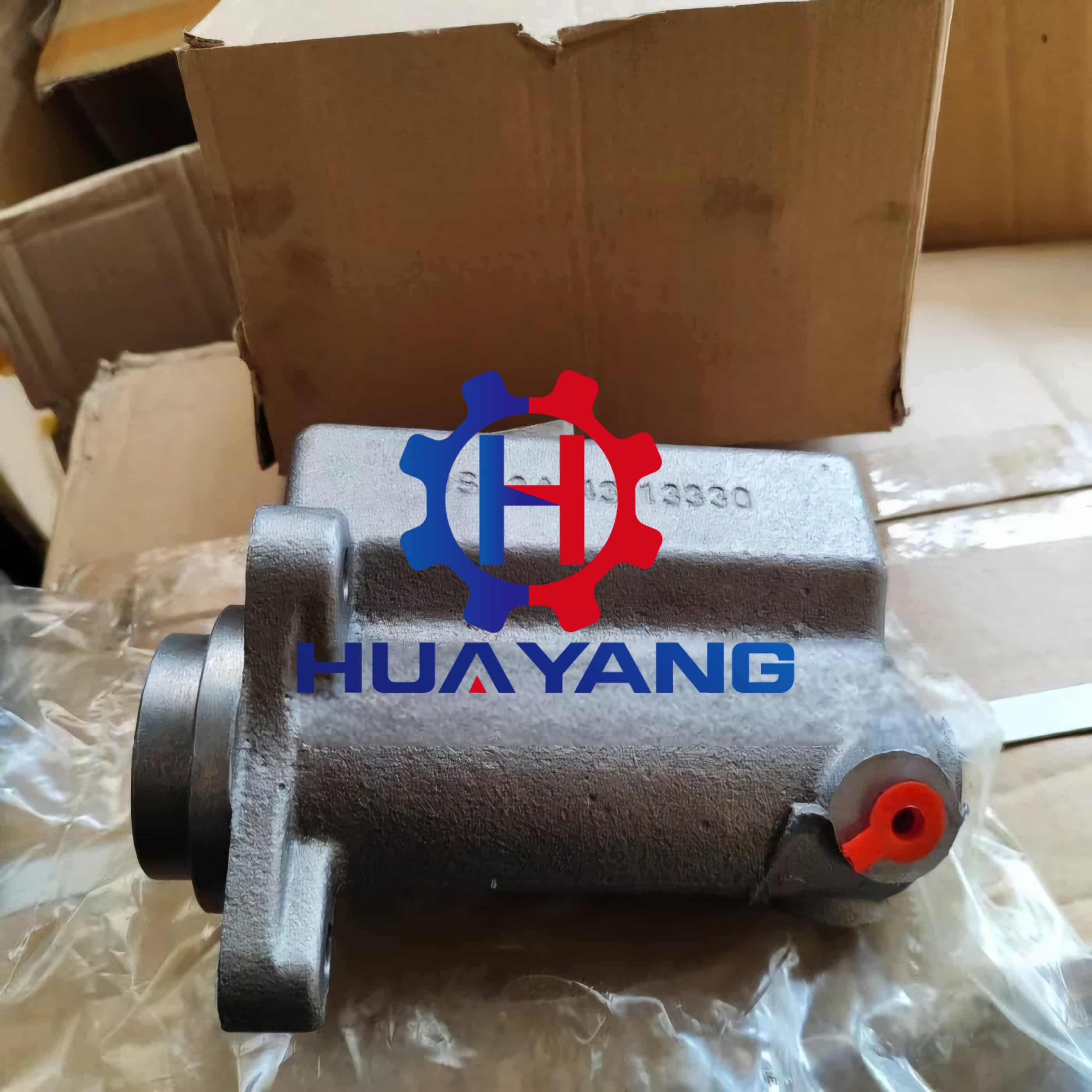

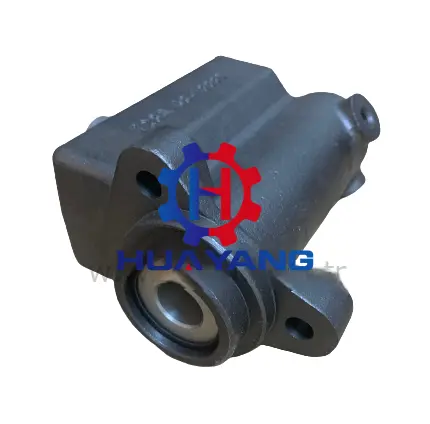

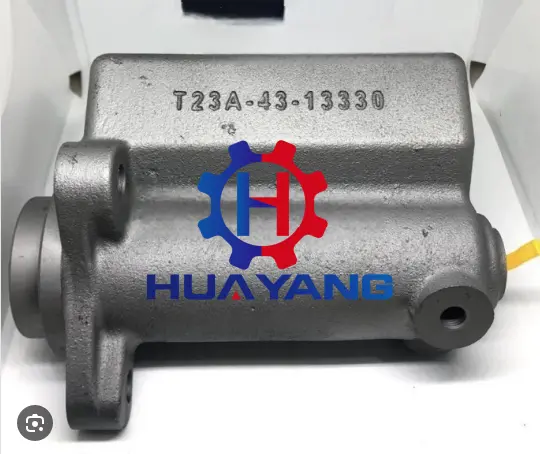

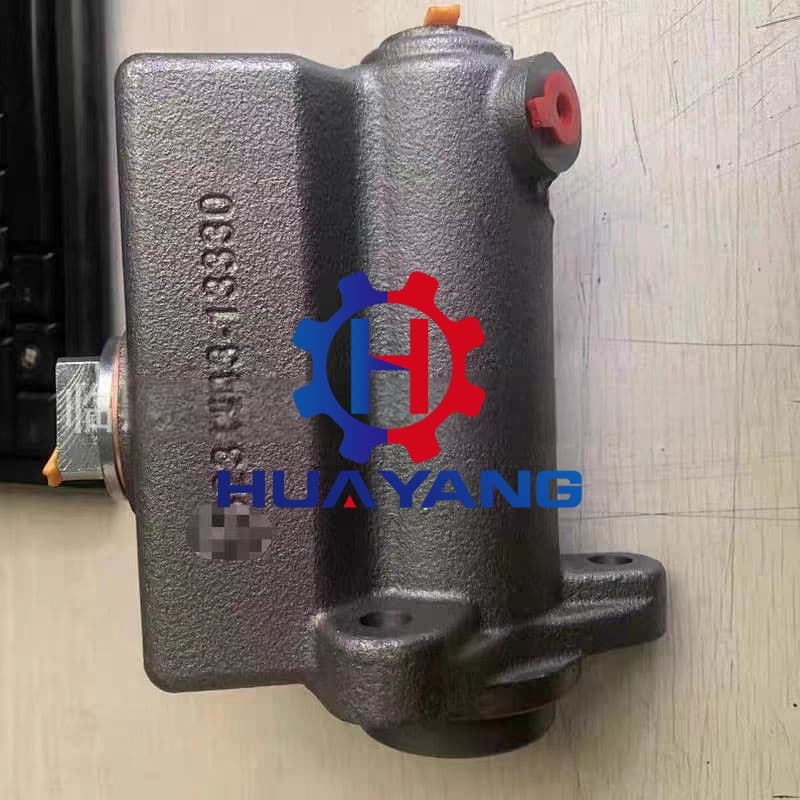

Komatsu 23A-43-13330 Master Cylinder
Part Numbers: 23A4313330, 23A-43-13330
Product Overview
The 23A-43-13330 Master Cylinder is a critical hydraulic component designed specifically for Komatsu heavy machinery. As the heart of a hydraulic braking or clutch system, it converts the mechanical force applied by the operator (via a pedal) into hydraulic pressure. This pressure is then transmitted through hydraulic lines to the slave cylinders, which actuate the brakes or clutch. Manufactured to Komatsu's rigorous standards, this master cylinder ensures reliable and precise control for demanding applications.
Product Parameters
Part Number: 23A-43-13330 / 23A4313330
Type: Hydraulic Master Cylinder
Application: Braking System / Clutch System (depending on specific equipment)
Compatibility: Specifically designed for certain Komatsu equipment models
Material: High-strength metals and durable seals
Operating Pressure: Designed to meet specific system pressure requirements
Port Sizes: Standard hydraulic connections
Key Advantages & Selling Points
OEM Quality: Manufactured to Komatsu's original equipment specifications for perfect fit and performance.
Durability: Constructed from robust materials resistant to wear, corrosion, and high pressure.
Reliability: Provides consistent and dependable hydraulic pressure for safe operation.
Precision Engineering: Ensures smooth pedal feel and accurate system response.
Easy Installation: Designed for direct replacement in compatible Komatsu models.
Long Service Life: Built to withstand the harsh operating conditions of heavy machinery.
Applicable Equipment
This master cylinder (PN: 23A-43-13330 / 23A4313330) is applicable to various Komatsu heavy equipment models. Please consult your equipment's parts manual or contact us to verify compatibility with specific models such as:
Komatsu Wheel Loaders (Specific WA series models)
Komatsu Motor Graders (Specific GD series models)
Other compatible Komatsu construction and mining machinery
(Note: Specific models must be confirmed based on the official Komatsu parts catalog for the 23A-43-13330 part number).
Application Scenarios & Case Analysis
Komatsu equipment utilizing this master cylinder operates in demanding environments requiring reliable braking or clutch control. Common scenarios include:
Construction Sites: Wheel loaders moving heavy materials on uneven terrain, requiring precise braking for positioning and safety.
Mining Operations: Motor graders maintaining haul roads under heavy loads and challenging conditions, where reliable braking is crucial for speed control and safety descents.
Quarries: Equipment handling aggregates, demanding consistent brake performance for loading and maneuvering.
Case Study Snippet: A large WA series wheel loader operating in a busy construction site experienced inconsistent braking. Diagnosis revealed a failing master cylinder. Replacing the old unit with a new 23A-43-13330 master cylinder immediately restored full brake pressure and responsiveness, significantly improving operational safety and efficiency on site. The machine could reliably stop under load on inclined surfaces, which was critical for its task of loading trucks.
Related & Similar Products
Beyond the 23A-43-13330, other master cylinders or related hydraulic components are essential for Komatsu equipment systems. These may include:
Other Master Cylinder Part Numbers: Different models or series of Komatsu equipment use master cylinders with varying specifications (e.g., different bore sizes, port configurations). Applicable equipment would be their respective Komatsu machine models.
Brake Slave Cylinders: Components that receive pressure from the master cylinder to actuate the brakes at the wheels. Applicable to the same equipment as the master cylinder it pairs with.
Hydraulic Hoses and Fittings: Connect the master cylinder to other parts of the hydraulic system. Used across a wide range of Komatsu hydraulic equipment.
Brake Boosters: In some systems, a booster assists the master cylinder to amplify braking force. Applicable to models equipped with boosted brakes.
Common Installation Issues & Solutions
Installing a master cylinder requires care to ensure proper function and safety. Common issues include:
Air in the System: This leads to a spongy pedal.
Solution: Thorough bleeding of the entire hydraulic system after installation is crucial. Follow the manufacturer's recommended bleeding procedure.
Leaking Connections: Improperly tightened or damaged fittings can cause leaks.
Solution: Use correct torque values for fittings. Inspect old lines and fittings for damage and replace if necessary. Ensure proper sealants (if required) are used.
Incorrect Bench Bleeding: Failing to properly bench bleed the new master cylinder before installation.
Solution: Always bench bleed the new master cylinder according to instructions to remove air trapped inside before mounting it on the equipment.
Using the Wrong Fluid: Using incompatible hydraulic fluid can damage seals and components.
Solution: Always use the type of hydraulic fluid specified in the Komatsu equipment service manual.
Always consult the Komatsu service manual for your specific equipment model and follow safety procedures when working on hydraulic systems.
