Product Details

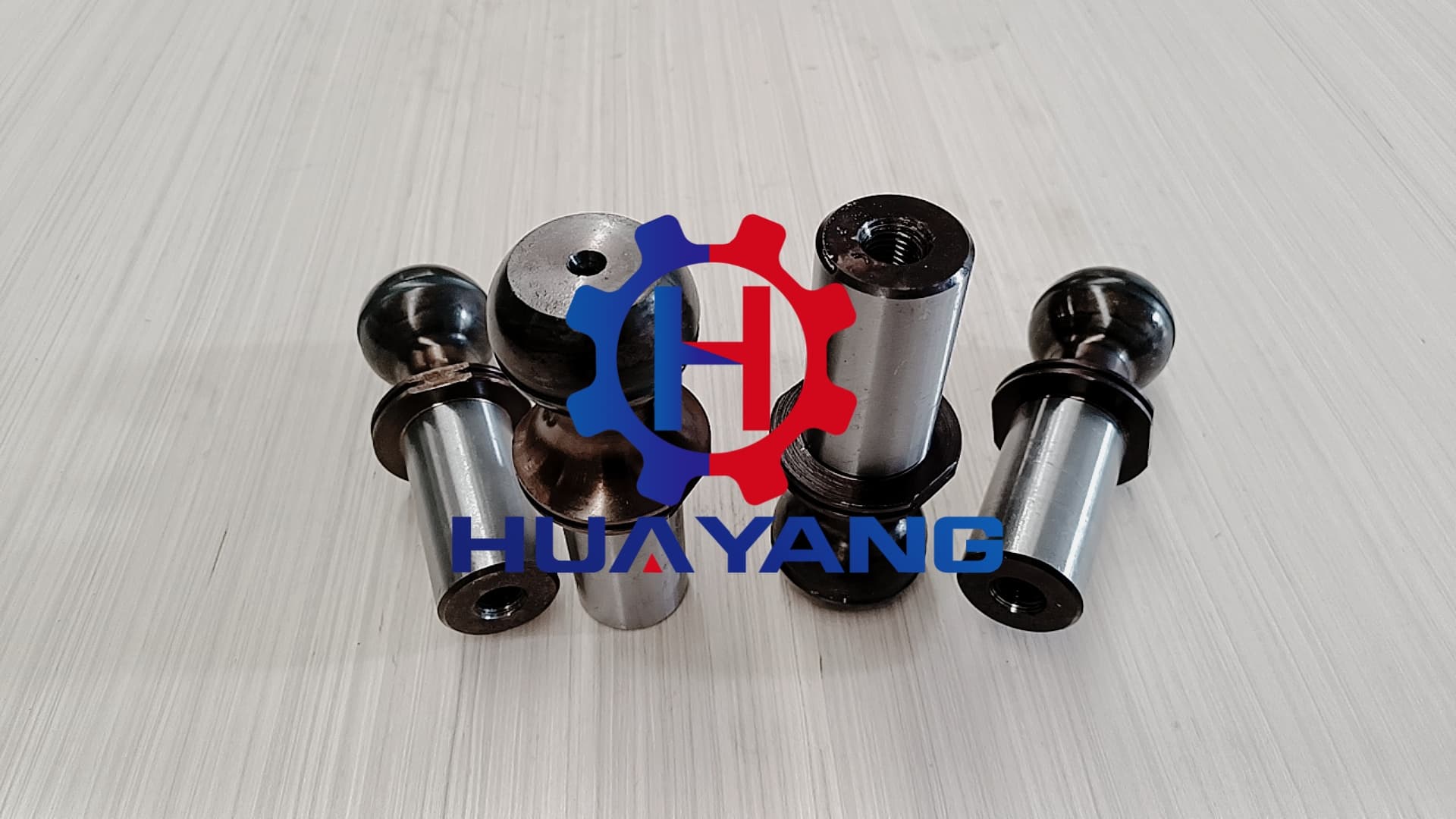

Product: 23B-27-11563 Stud Ball
Introducing the high-quality 23B-27-11563 Stud Ball, a critical component engineered for durability and performance in demanding heavy machinery applications. This specific stud ball is designed as a direct replacement part, ensuring compatibility and reliable operation for your equipment.
Manufactured to precise specifications, this stud ball provides essential connection points within linkage systems, contributing to smooth and accurate movement. Its robust construction is built to withstand the harsh conditions typically encountered in construction and road maintenance environments.
Product Parameters
Part Number: 23B-27-11563
Component Type: Stud Ball
Material: High-strength steel alloy (typical for such components)
Surface Treatment: (Specify typical treatment like Phosphating, Zinc Plating, etc. - e.g.,) Corrosion-resistant coating
Dimensions: (Specific dimensions are part number dependent, but general type description is possible - e.g.,) Engineered to OEM specifications for precise fit
Compatibility: Designed for specific heavy machinery models
Advantages and Selling Points
Direct Replacement: Specifically designed to replace the original part, ensuring perfect fit and function.
Durable Construction: Made from robust materials to withstand high stress and challenging operating conditions.
Reliable Performance: Contributes to the smooth and precise operation of linkage systems.
Extended Service Life: High-quality manufacturing leads to increased longevity compared to inferior alternatives.
Cost-Effective Solution: Offers OEM-level quality without the premium price tag.
Applicable Equipment
This 23B-27-11563 Stud Ball is primarily designed for use with the Komatsu GD-511 Grader. It is a vital part of the machine's control or linkage systems, ensuring smooth and precise blade movement and other operational functions.
Application Scenarios and Case Analysis
Komatsu GD-511 Graders, equipped with components like the 23B-27-11563 Stud Ball, are essential machines in various heavy-duty applications:
Road Construction and Maintenance: Used for grading, leveling, and finishing road surfaces, shoulders, and unpaved roads.
Site Preparation: Preparing construction sites by leveling ground, spreading materials, and creating desired slopes.
Snow Removal: In colder climates, graders are used with plows for clearing snow from roads and large areas.
Mining Operations: Maintaining haul roads and preparing areas within mine sites.
Case Analysis: Consider a road construction project requiring precise grading for asphalt paving. A worn or damaged stud ball in the blade linkage system of a GD-511 Grader can lead to play or inaccuracy in blade positioning. This results in uneven surfaces, requiring rework, increasing costs, and delaying project completion. Replacing the faulty stud ball with a reliable 23B-27-11563 ensures the linkage operates smoothly and accurately, allowing the operator to achieve the required grade tolerances efficiently, thus saving time and resources and ensuring a high-quality finish.
Related Products and Applicable Equipment
Beyond the 23B-27-11563 Stud Ball, other related linkage components are vital for the proper function of Komatsu Graders and similar heavy equipment. These often include:
Tie Rod Ends: Connect steering arms to steering knuckles, found on graders, loaders, dozers, etc.
Spherical Bearings / Rod Ends: Used in various control linkages on graders, excavators, cranes, and more.
Linkage Pins and Bushings: Common wear items in pivot points across all types of heavy machinery.
Hydraulic Cylinder Pins and Bosses: Connecting points for hydraulic cylinders on blades, rippers, and other attachments.
These parts are frequently found in the same systems (steering, blade control, articulation) and often require inspection and potential replacement when servicing related components like the stud ball. Applicable equipment includes other models of Komatsu Graders (e.g., GD655, GD675) and similar graders from brands like Caterpillar, John Deere, and Volvo, depending on the specific part design.
Common Installation Problems and Solutions
Proper installation of a stud ball is crucial for its performance and lifespan. Here are common issues and their solutions:
Problem: Damaged threads on the stud or mating component during installation.
Solution: Always start threading by hand to ensure correct alignment. Use appropriate thread cleaner and lubricant. If threads are damaged, use a thread tap or die carefully, or replace the damaged component.
Problem: Insufficient or excessive torque applied to the nut.
Solution: Always use a torque wrench and follow the manufacturer's specified torque values for the specific stud size and grade. Undertorquing can lead to loosening; overtorquing can stretch or break the stud or damage the mating part.
Problem: Improper seating of the stud ball taper.
Solution: Ensure both the stud taper and the mating bore are clean and free of dirt, grease, or damage before insertion. The stud should seat firmly into the taper before the nut is tightened.
Problem: Using incorrect or damaged fastening hardware (nuts, washers).
Solution: Always use new, correct-grade nuts and washers as specified by the equipment manufacturer. Damaged or incorrect hardware can fail under load.
